PPGI is pre-painted galvanized steel, also known as pre-coated steel, color coated steel etc.
Using Hot Dip Galvanized Steel Coil as the substrate, PPGI is made by first going through surface pretreatment, then the coating of one or more layers of liquid coating by roll coating, and finally baking and cooling. The coatings used including polyester, silicon modified polyester, high-durability, corrosion-resistance and formability.
We are a PPGI & PPGL manufacturer in Shandong, China. Our PPGI (Prepainted Galvanized Steel) & PPGL (Prepainted Galvalume Steel) are available in a variety of specifications.
We could also provide the product life length lasts for decades as customers required.
![PPGI & PPGL Steel Coil PPGI & PPGL Steel Coil](https://hengze-steel.com/wp-content/uploads/2018/02/ppgi-ppgl-steel-coil-1.jpg)
![Blue PPGI PPGI & PPGL Steel Coil](https://hengze-steel.com/wp-content/uploads/2018/02/Blue-PPGI-400x267.jpg)
Common RAL Colors
You can choose the customized color you want and produce according to the RAL color. Here are some of the colors that our customers would normally choose:
PPGI Steel Coil Specifications
Product Name | PPGI, Prepainted Galvanized Steel Coil |
Technical Standard | ASTM DIN GB JIS3312 |
Grade | SGCC SGCD or customer's requirement |
Type | Commercial Quality/DQ |
Thickness | 0.13-2.0mm |
Width | 600-1500mm |
Zinc Coating | 40-275 g/m2 |
Color | all RAL Colors, or According to Customers Require/Sample |
Top Side | Primer paint+polyester paint coating |
Back side | Primer epoxy |
Coil Weight | 3-8 tons per coil |
Package | Standard export package or customized |
Hardness | >=F |
T Bend | >=3T |
Reverse Impact | >=9J |
Salt Spray Resistance | >=500 hours |
PPGI Steel Sheet Applications
Color coated steel coil/sheet (PPGI & PPGL) is widely used in:
- Building
- Roofing
- Transport
- Home Appliances, such as the side door plate of refrigerators, shell of DVDs, air conditioners and washing machines.
- Solar Energy
- Furniture
PPGI Production Video
PPGI Production Line
![Color Coated Production Line Color Coated Production Line](https://hengze-steel.com/wp-content/uploads/2018/02/color-coated-production-line-900-600.jpg)
![Color Coated Production Line Color Coated Production Line](https://hengze-steel.com/wp-content/uploads/2018/02/ppgi-ppgl-steel-coil-production-line.jpg)
The annual capacity of Color-coated Line is 240,000 tons. We could manufacture top grade steel sheet in building materials plate, automobile plate, electrical appliance plate, solar energy panel, high coating and corrosion resistant plate, MATT plate and plate used for windows and doors.

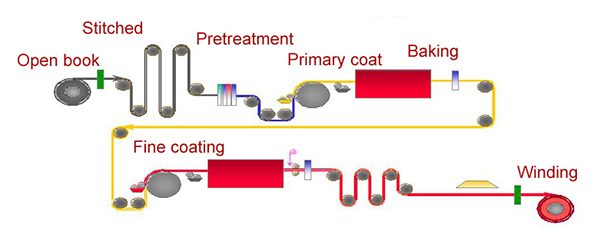

PPGI Production Process Flow Chart
![PPGI Production Line Flow Chart MCL Process](https://hengze-steel.com/wp-content/uploads/2018/02/ppgi-production-line-flow-chart.jpg)
Quality Control
We have our own Physical & Chemical Testing Center Lab to guarantee our product quality. Our test items & instrument fully meet international standards.
![thickness gauge Thickness Gauge](https://hengze-steel.com/wp-content/uploads/2017/03/thickness-gauge-2.jpg)
![Micrometer Micrometer](https://hengze-steel.com/wp-content/uploads/2017/03/micrometer-2.jpg)
![Meteorologic Meteorologic](https://hengze-steel.com/wp-content/uploads/2017/03/meteorologic.jpg)
![Gloss Meter Gloss Meter](https://hengze-steel.com/wp-content/uploads/2017/03/gloss-meter.jpg)
![BY Type of Pencil Hardness Tester BY Type of Pencil Hardness Tester](https://hengze-steel.com/wp-content/uploads/2017/03/by-type-of-pencil-hardness-tester.jpg)
![Bending Machine Bending Machine](https://hengze-steel.com/wp-content/uploads/2017/03/bending-machine.jpg)
![Visual Color Box Visual Color Box](https://hengze-steel.com/wp-content/uploads/2017/03/visual-color-box.jpg)
![Row Lattice Unit Row Lattice Unit](https://hengze-steel.com/wp-content/uploads/2017/03/row-lattice-unit.jpg)
Packing Details
Standard Export Packing:
- 4 eye bands and 4 circumferential bands in steel
- Galvanized metal fluted rings on inner and outer edges
- Galvanized metal and waterproof paper wall protection disk
- Galvanized metal and waterproof paper around circumference and bore protection
About the sea worthy packaging: extra reinforcement before shipment to ensure that the goods are safer and less damaged to customers.
![Steel Sheet Packing Steel Sheet Packing](https://hengze-steel.com/wp-content/uploads/2018/02/steel-sheet-packing-1.jpg)
![Steel Sheet Packing Steel Sheet Packing](https://hengze-steel.com/wp-content/uploads/2018/02/steel-sheet-packing-2.jpg)
![Packing Details – Before Shipping Packing Details - Before Shipping](https://hengze-steel.com/wp-content/uploads/2018/02/packing-details-hengze-steel-products-before-shipping-1.jpg)
![Packing Details – Before Shipping Packing Details - Before Shipping](https://hengze-steel.com/wp-content/uploads/2018/02/packing-details-hengze-steel-products-before-shipping-2.jpg)
FAQ about PPGI / PPGL
What is the advantage of GL compared with other steel?
The alu and zinc alloy coating enables the steel with much better anti corrosion performance with very economic cost rate.
What are the majority usage of the galvanized steel?
Thickness 0.13mm-0.50mm steel is popular for roofing, 0.60-3.0mm steel popular for deforming and decking.
What is the shipping package?
Seaworthy package plus in-container reinforce, eye to wall/eye to sky with wood pallet available for option.
How to buy PPGI / PPGL?
Welcome to contact us to get the latest competitive price.
